Description

SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Origin: Mainland China

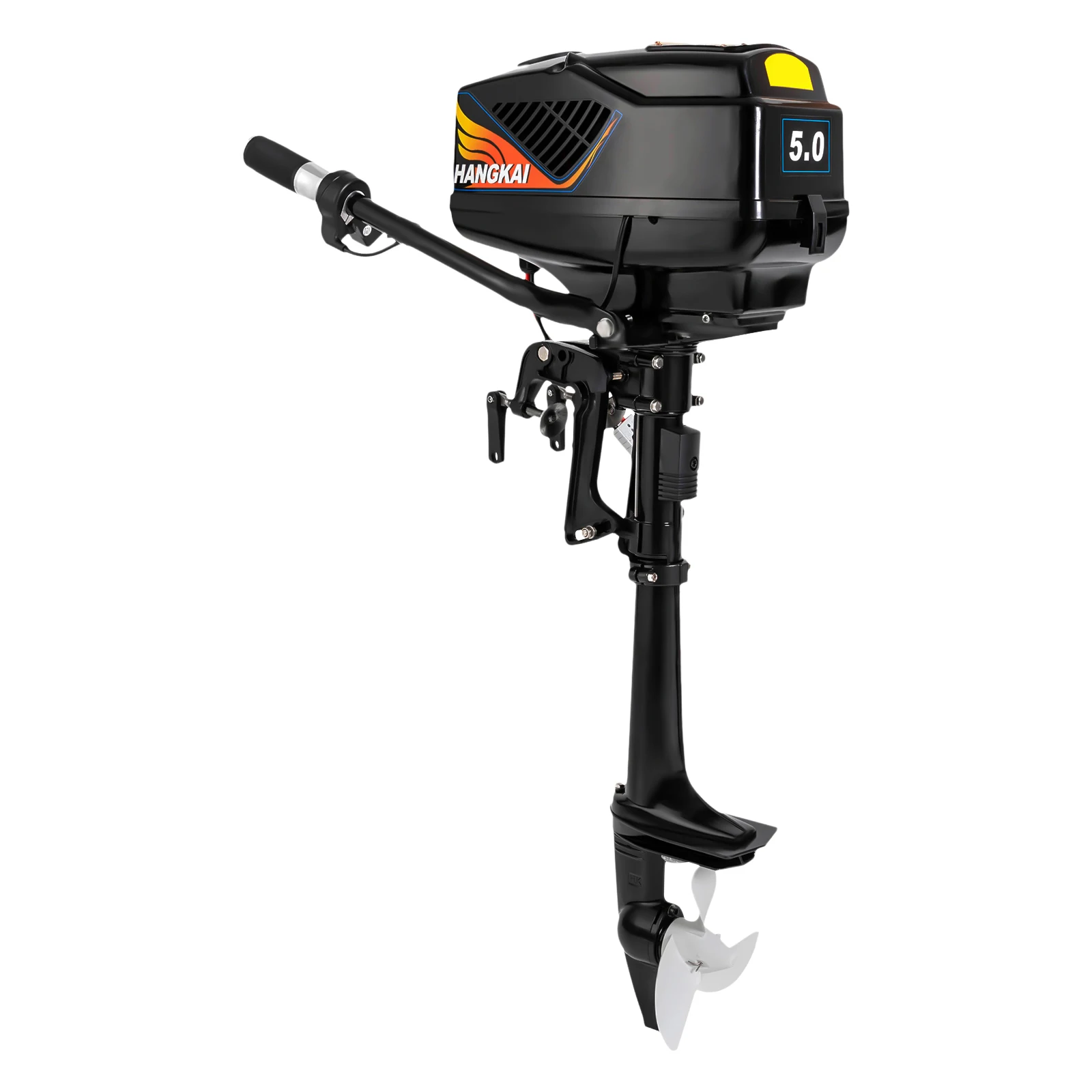

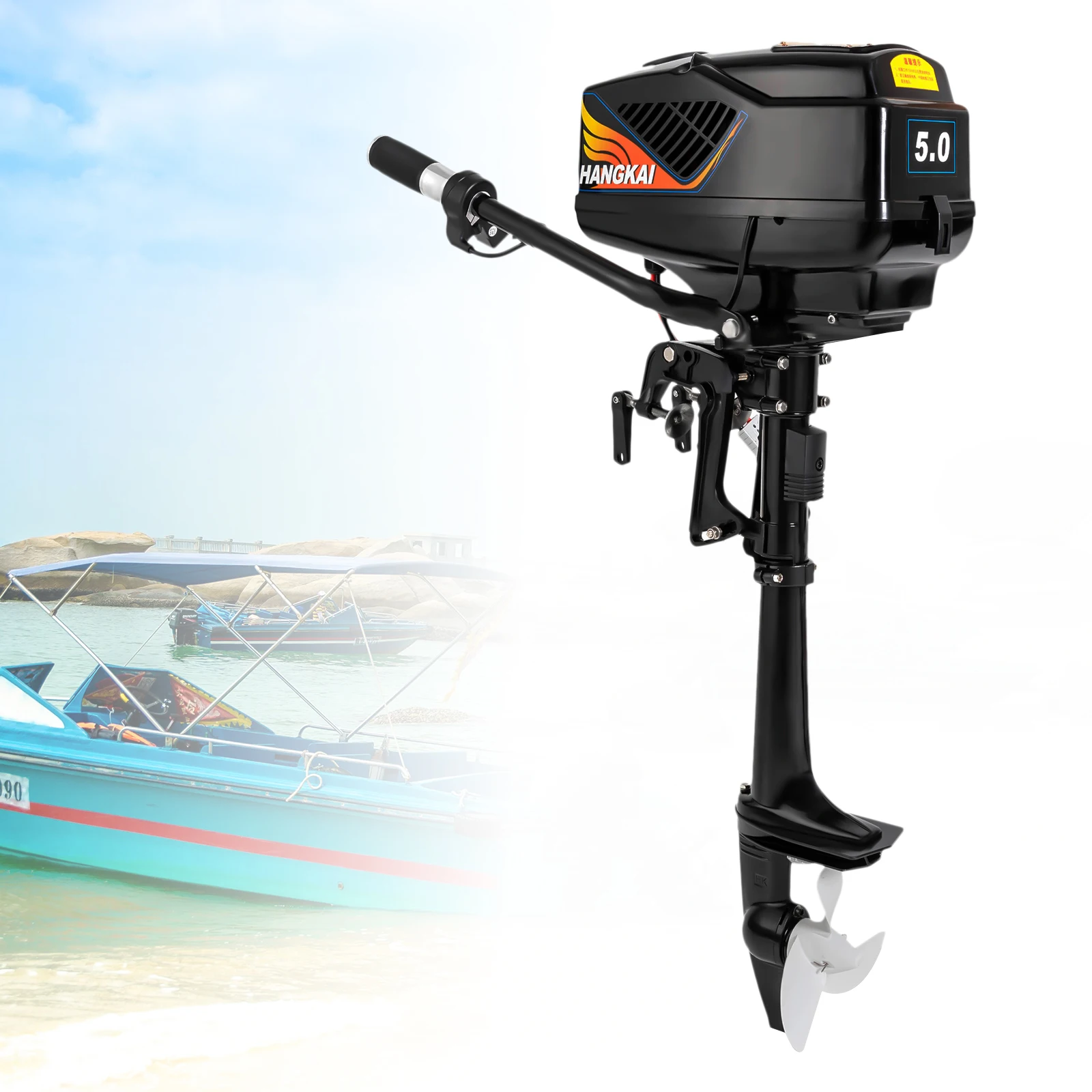

48V 1200W Electric Outboard Motor 5.0 25A Outboard Engine Brushless Trolling Motor 3307lbs Thrust Heavy Duty Marine Inflatable Fishing Boat Engine Tiller Control Rotatable Stand Short Shaft 3000RPM with 3-Blade Propeller for Fishery Aquaculture Outdoor Adventure (Black)

With a huge thrust, a super strong shaft, and precise speed control, the outboard engine is a good helper for your water work. Its brushless pure copper motor and flexible steering let you sneak up on fish, outdoor adventure, etc. with the best speed and low noise.

Key Features

Build to Last: The exquisite painting process and aluminum alloy improve the corrosion resistance and wear resistance of the product(able to withstand fresh and saltwater environments), which makes it can serve you for a long time.

Easy to Install: The simple structure and lightweight (26.45 lbs) allows you to easily install without any tools.

Strong Power:,1200 watts power, pure copper brushless motor provides strong power to it.

Environmentally Friendly: The electrically powered outboard eliminates exhaust pollution from gasoline. And the pure copper brushless motor produces less wear and noise, creating a smoother user experience for you.

Flexible Control: Having step-less speed change and constant speed function in reverse and forward gears allows you to enjoy different cruising experiences. The 180°rotatable stand and omnidirectional swivel joystick allow a more flexible operation to meet different needs.

High Efficiency and Energy-saving: Compared with the brush motor, the brushless motor is more efficient and easy to maintain without replacing the carbon brush, which saves electricity and time.

Powerful Thrust: High-quality aluminum alloy material, powerful pure copper motor and stable structure provide an excellent thrust of 3307lbs for you to use with peace of mind.

Customer Service:We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Key Switch: You can turn the key to control the opening, closing, and stopping of the outboard engine, which is very convenient.

Anti-winding Propeller: The three-blade anti-winding propeller adopts a bionic fluid dynamics design to prevent winding, reduce underwater resistance and improve propulsion efficiency.

Ergonomic Handle: Its handle conforms to the ergonomic design, making it comfortable to hold. The gear buttons at the handle are designed to facilitate your operation.

Heat Dissipation Holes: Multiple heat dissipation holes can help the motor dissipate heat and prolong its service life.

Application

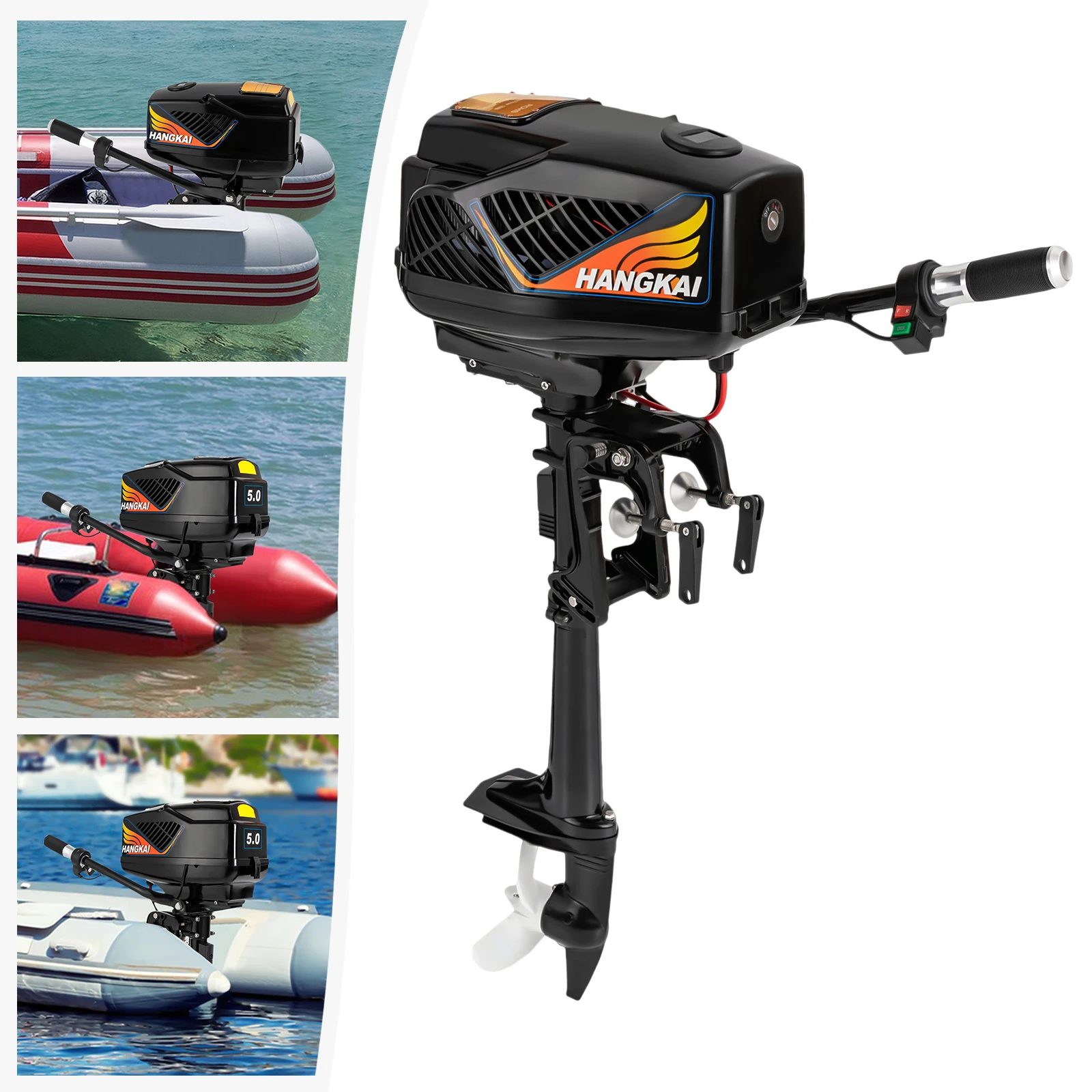

This electric outboard motor is suitable for small ships with different materials within 16.4 feet in length, such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery, aquaculture, outdoor exploration, etc.

Specification

Model: DD-48V-1200W

Power: 1200W

Rated Voltage: 48V

Rated Current: 25A

Rated Speed: 3000rpm

No-load Speed: 4000 rpm

Process: Spray Painting

Gear Ratio: 2.08(27:13)

Control System: Tiller Control

Max. Speed: 15km/h/9.3mph

Motor Type: Pure Copper Brushless Motor

Reverse Gear: Yes

Thrust: 1500kg/3307lbs, Speed 5-8 km/hour ( According to the Environment, Water, Boat load will be Different )

Recommended Battery: 1*48V/4*12V (40Ah Capacity can be Used for About 2 Hours, the Longer the Endurance, the Slower the Speed)

Propeller Model(in): 7-1/4×5-A(The size of the propeller is 7.25 inches/18.4cm, and the propelling distance of the propeller is 5 inches/12.7cm after one revolution)

Length of Suitable Ships: Less than 5m/16.4ft

Package Size: 95*42*29cm/37.4*16.53*11.41in

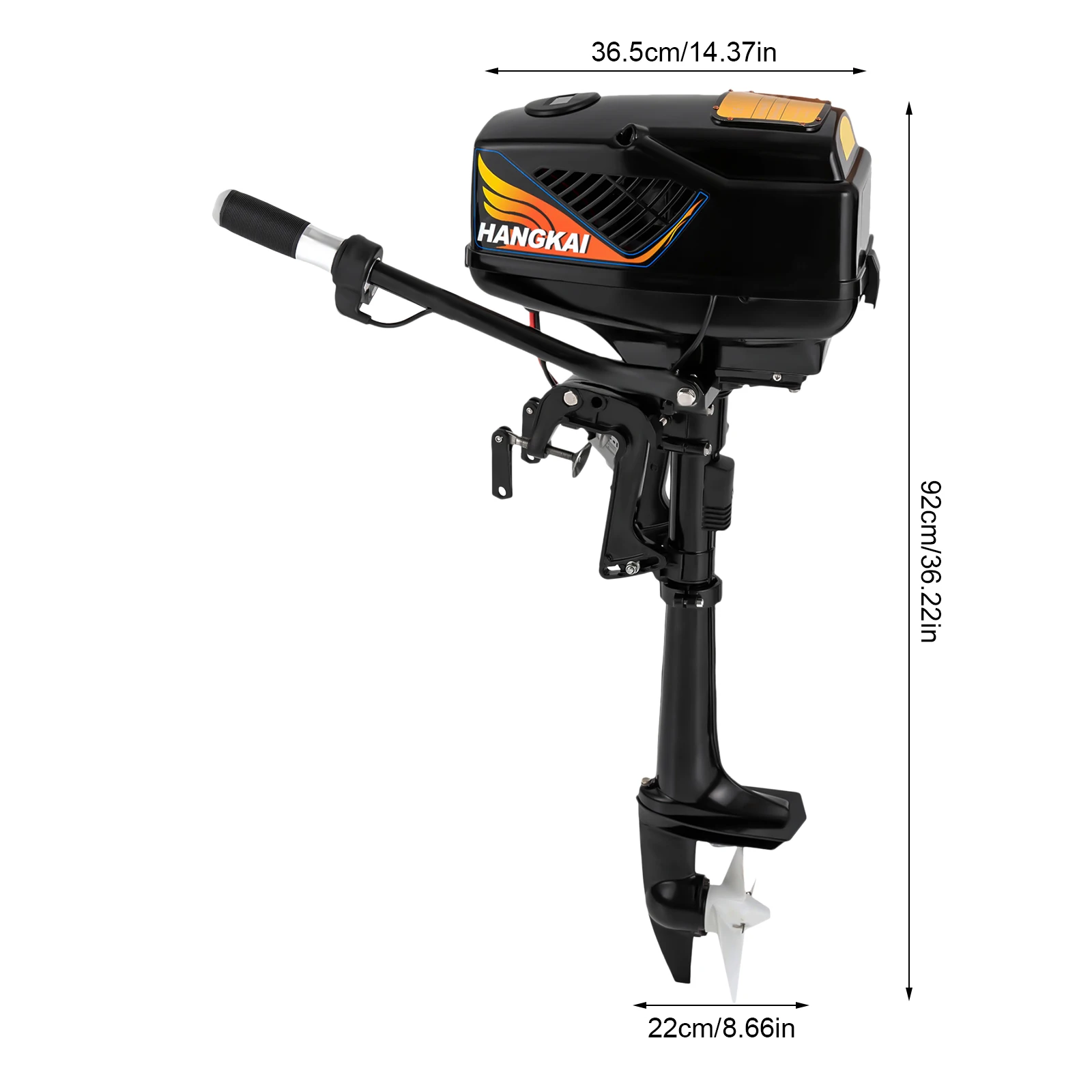

Product Size: 92*36.5*22cm/36.22*14.37*8.66in

Gross Weight: 14kg/30.86lbs

Net Weight: 12kg/26.45lbs

Tail Plate Height: 42cm/16.53in(Short Shaft)

Stern Plate Adapter Height: 40cm/15.74in

Package Included

1* Electric Outboard Motor

1* Propeller

1*English User Manual

2*Keys

All Accessories Needed for Installation

Maintenance

1. Complete machine maintenance(The following time and date intervals are in no order.)

1.1 Daily inspection: whether screws and nuts are loose.

1.2 Clean the dust on the surface of the whole machine every 8 hours.

1.3 Check the connection of high-voltage line every 100 hours.

2. Keep the product clean

2.1 Clean the dirt on the motor controller regularly. It is forbidden to spray with water, and clean it with a brush and high-pressure air.

2.2 Before starting each time, combustible materials around the controller must be cleaned to avoid fire.

2.3 Clean the sundries in the cooling system to avoid blocking the air duct. The cooling fan should be cleaned regularly to avoid overheating and mechanical damage.

Common Faults and Troubleshooting

1. If the starting handle is found to be powered off during operation, please check whether the positive and negative poles of the battery and the whole set of power cables are connected properly.

2. Always check whether the controller screws are loose.

3. The gearbox should be replaced with gear oil for three months.

Notes

1. Before installing and using the electric outboard motor, please read the entire manual carefully as this will help you understand the electric outboard motor and its operation.

2. Please wash the propeller with clean water after sailing in sea water or turbid water.

3. Please store the electric outboard engine in a dry and ventilated place away from direct sunlight.

4. Please allow slight color difference caused by shooting light and 1-3 cm error caused by manual measurement and make sure you don't mind before buying.

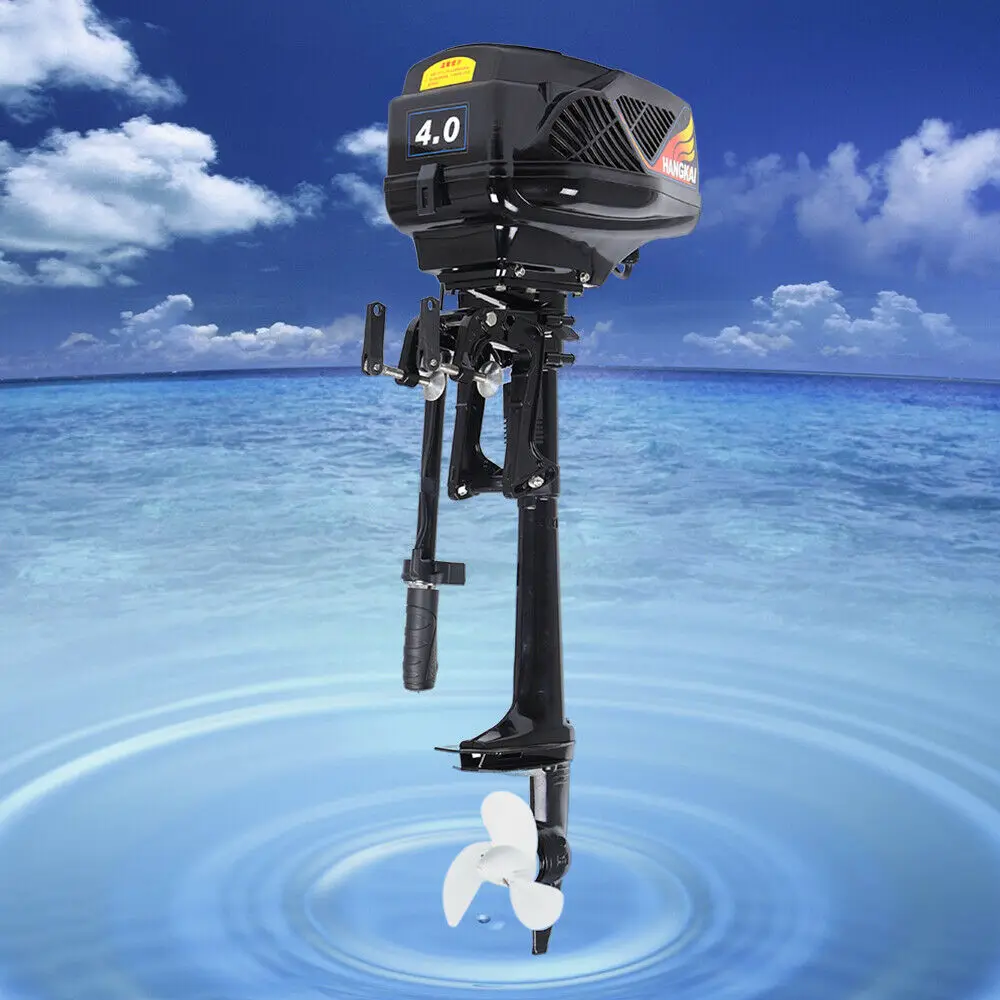

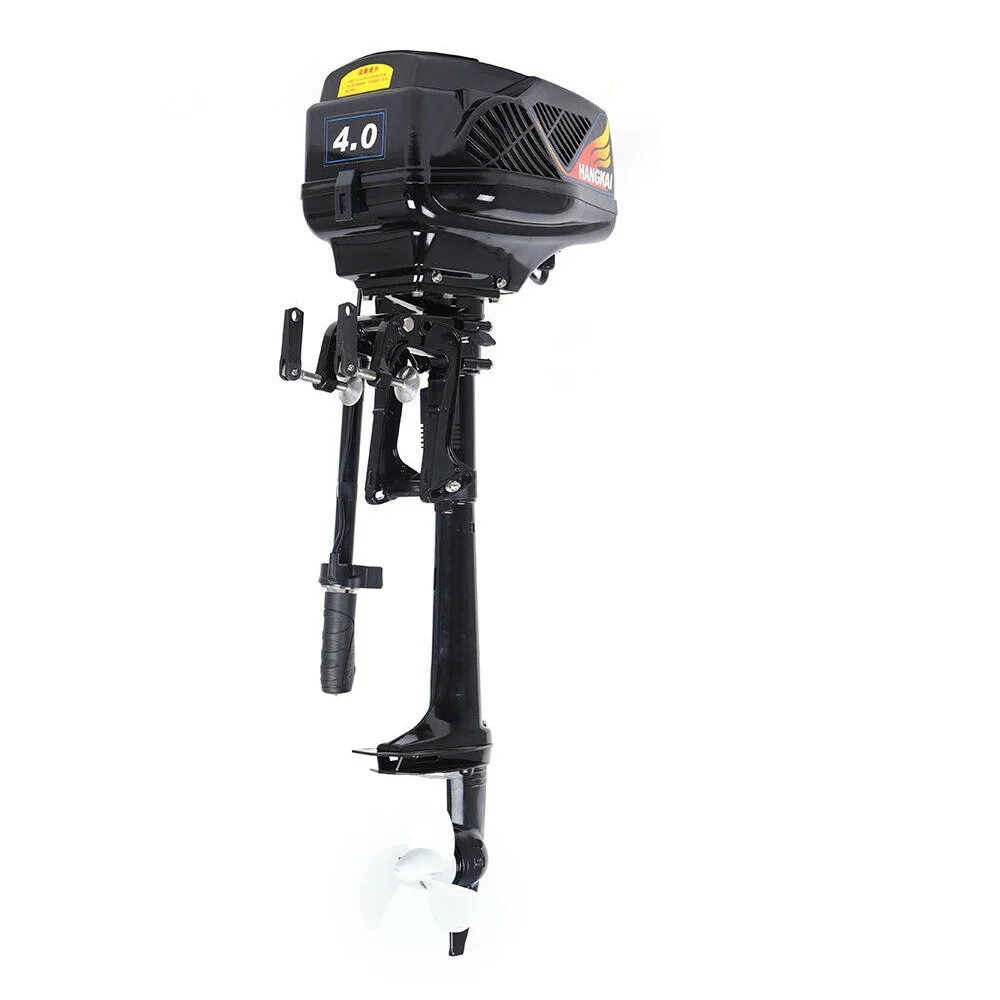

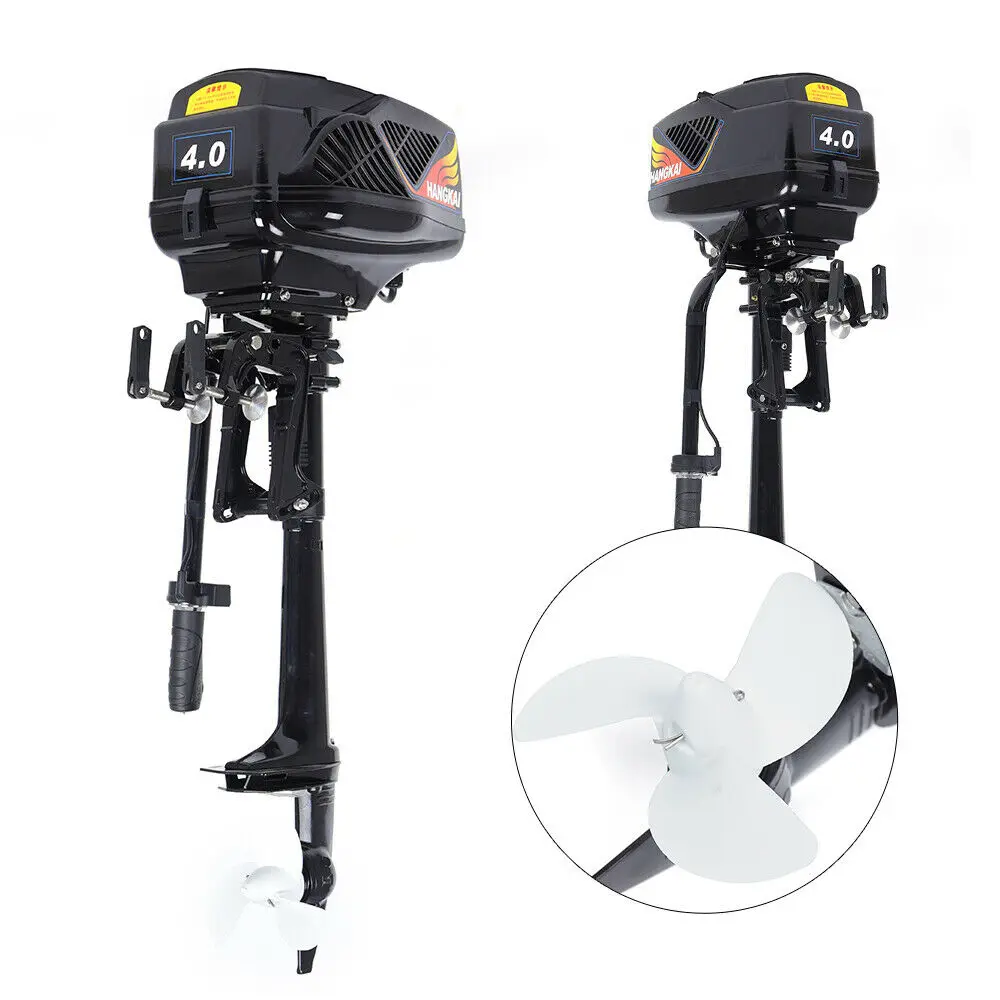

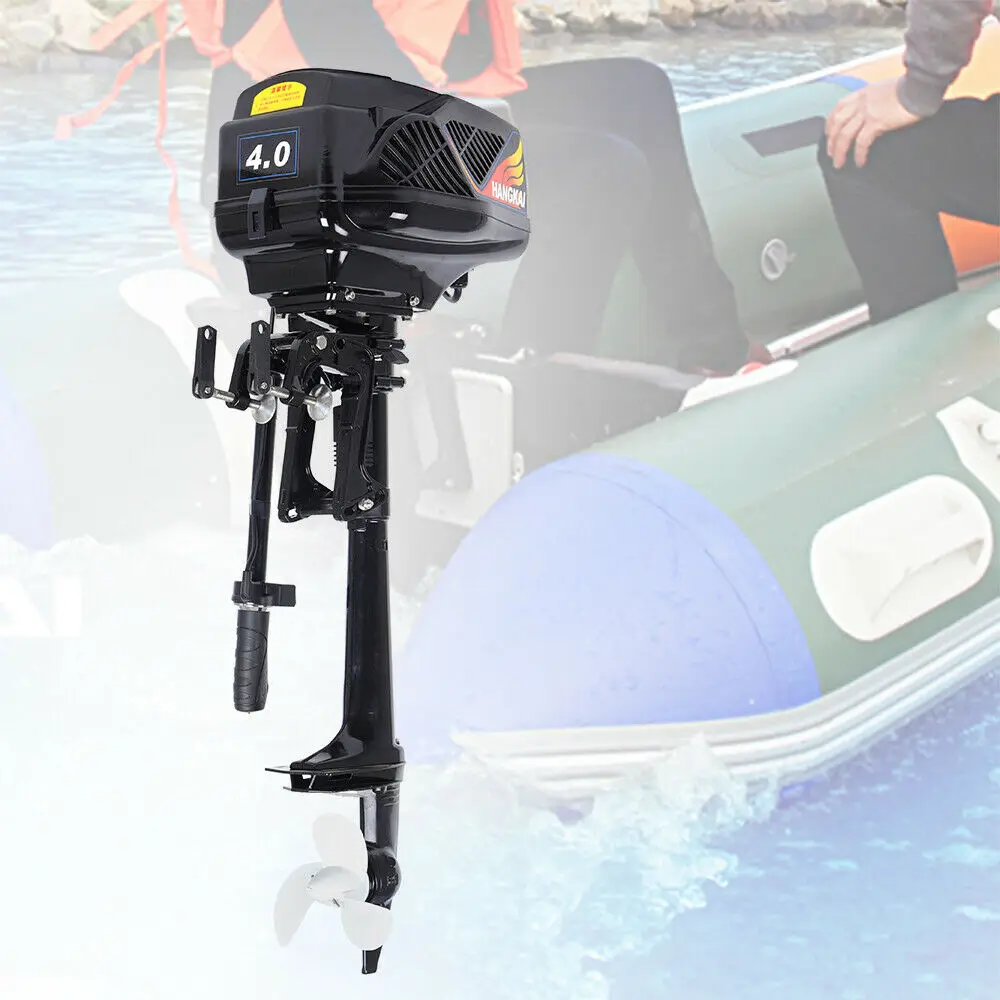

48V 1000W Electric Outboard Motor 4.0 21A Outboard Engine Brushless Trolling Motor 2204lbs Thrust Heavy Duty Marine Inflatable Fishing Boat Engine Tiller Control Rotatable Bracket Short Shaft 3000RPM with 3-Blade Propeller for Fishery Aquaculture Outdoor Adventure (Black)

If you are a water enthusiast who loves to explore the sea or enjoy the crashing waves, then our product is ideal for you. This electric outboard motor allows you to drive fast and save a lot of time and energy. Whether you're embarking on a fishing trip or a recreational cruise, it's the right companion for your water adventures.

Key Features

Build to Last: This product is made of high-quality aluminum and plastic with a baking paint process, featuring high hardness, wear resistance, anti-rust, anti-corrosion, and long service life.

Strong Power: The 1000W high power brushless motor with 3000rpm high speed provides you with strong power, allowing you to drive fast and save a lot of time and energy.

Powerful Thrust: The premium materials, powerful motor, stable structure, and three-blade propeller provide you with a superb thrust of 2204.62 lbs, so you can use it with peace of mind.

Eco-friendly and Convenient: The brushless motor is highly efficient and does not require the replacement of carbon brushes, which is easy to maintain and saves electricity and time. In addition, it makes less noise and does not produce fumes, so you can say goodbye to the hassle and environmental impact of gasoline-powered tools.

Flexible Controls: This product adopts the stepless speed regulation design, without the abruptness of shifting gears, which makes driving smoother and easier. In addition, the 90° rotatable bracket and omni-directional rotating joystick allow for more flexible operation to meet different needs.

Good Heat Dissipation: Multiple dissipation holes on the housing dissipate heat quickly to prevent it from burning out after a long time of use.

Easy to Install: This product can be installed on the boat without additional tools, you just need to rack it to the stern plate and then lock the boat clamp screws to use it, which is convenient and fast.

Good Customer Service:We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Practical Handle: It is ergonomically designed to be easy to hold in the hand while increasing friction to prevent hand slippage.

Muffler: It effectively reduces the noise generated by the motor's operation.

Anti-swirl Plate: It effectively reduces the turbulence of waves and prevents water from wetting your clothes.

Application

This product is suitable for various types of boats within 2204.62 lbs, which can be used in fishing, aquaculture, outdoor adventure, water sports, water tourism, water rescue, and other fields.

Specification

Color: Black

Style: Modern

Material: Aluminum, Plastic

Process: Baking Paint

Motor Type:Brushless Motor

Power: 1000W

Voltage: 48V

Current: 21A

Speed: 3000rpm

Recommended Battery: 48V100A/3-4H

Thrust: Within 1T/ 2204.62 lbs

Gear Ratio: 2.08 (27:13)

Gross Weight: 13.4 kg/ 29.54 lbs

Net Weight: 11 kg/ 24.25 lbs

Package Size: 96*43*29 cm/ 37.8*16.93*11.42 in

Product Size: 36.5*22*92 cm/ 14.37*8.66*36.22 in

Package Included

1* Electric Outboard Motor

Notes

1. This product does not include a battery or charger. Our recommended battery model is one 48v battery or four 12v batteries that you can purchase at your local store that sells batteries.

2. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
